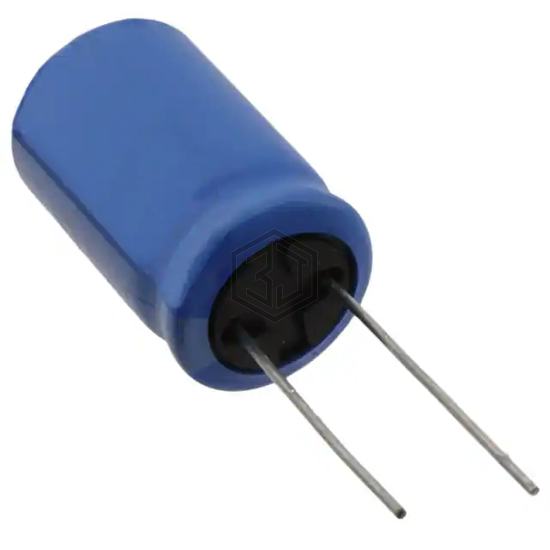

CAP ALUM 47UF 20% 250V RADIAL
UBT2E470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,908
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 225 mA @ 120 Hz |
| Ripple Current @ High Frequency | 337.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX2D470MHL | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 88% | View |
| UBX2C470MHL1TO | Nichicon | CAP ALUM 47UF 20% 160V RADIAL | 81% | View |
| EGXF251ELL470MJ35S | United Chemi-Con | CAP ALUM 47UF 20% 250V RADIAL TH | 70% | View |
| UBT1J470MPD1TD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 64% | View |
| EGXE101ELL470MJ16S | United Chemi-Con | CAP ALUM 47UF 20% 100V RADIAL | 61% | View |
| MAL211937479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 40V AXIAL | 58% | View |
Submit your RFQ for UBT2E470MHD and get a quote within 24 hours.
