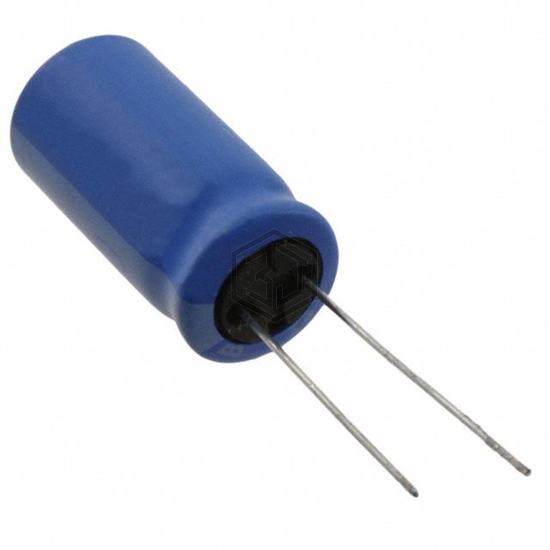

CAP ALUM 22UF 20% 250V RADIAL
UBT2E220MHD8TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 6,128
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 128 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 600D226F250DL4E3 | Vishay Sprague | CAP ALUM 22UF 250V AXIAL | 91% | View |
| MAL211892229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 200V AXIAL | 83% | View |
| UBT1H220MPD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 76% | View |
| UBT1H220MPD8TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 76% | View |
| 50RX3022M8X11.5 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 73% | View |
| EGXE500ELL220MH12D | United Chemi-Con | CAP ALUM 22UF 20% 50V RADIAL | 71% | View |
Submit your RFQ for UBT2E220MHD8TO and get a quote within 24 hours.
