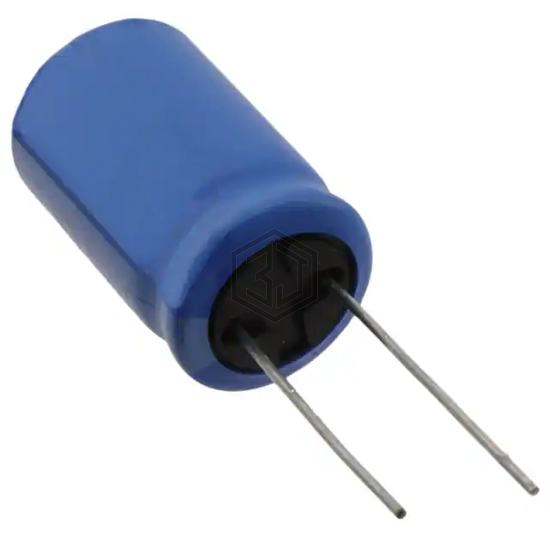

CAP ALUM 220UF 20% 100V RADIAL
UBT2A221MHD8TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,257
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW2A221MPD | Nichicon | CAP ALUM 220UF 20% 100V RADIAL | 100% | View |
| MAL211949221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 100V AXIAL | 81% | View |
| EEU-TA1J221L | Panasonic Electronic Components | CAP ALUM 220UF 20% 63V RADIAL | 81% | View |
| UBT1K221MHD8 | Nichicon | CAP ALUM 220UF 20% 80V RADIAL | 80% | View |
| UBX1J221MHL | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 68% | View |
| B41896C7227M000 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 35V RADIAL | 57% | View |
Submit your RFQ for UBT2A221MHD8TN and get a quote within 24 hours.
