CAP ALUM 100UF 20% 100V RADIAL

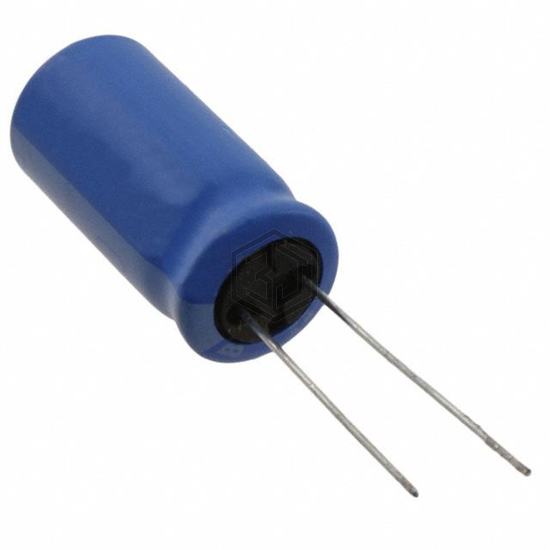

UBT2A101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 3,386
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 495 mA @ 120 Hz |
| Ripple Current @ High Frequency | 990 mA @ 100 kHz |
| Impedance | 250 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW2A101MHD | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 100% | View |
| 100RX30100M12.5X20 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 86% | View |
| UBT1K101MPD | Nichicon | CAP ALUM 100UF 20% 80V RADIAL | 79% | View |
| EEU-TA1J101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V RADIAL | 75% | View |
| MAL212028101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V AXIAL | 72% | View |
| MAL214668101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V RADIAL | 69% | View |
Submit your RFQ for UBT2A101MHD and get a quote within 24 hours.
