CAP ALUM 470UF 20% 35V RADIAL

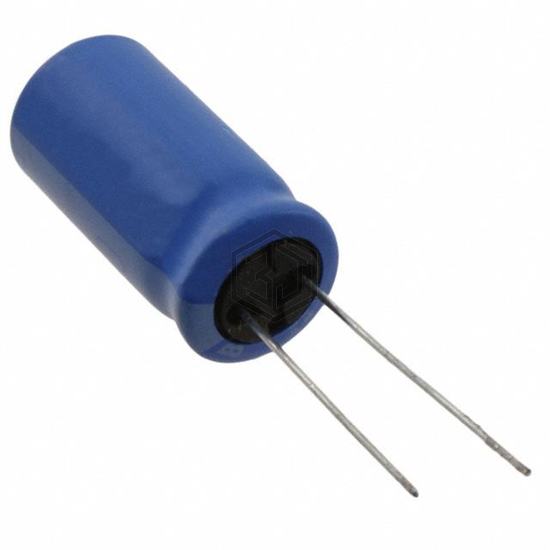

UBT1V471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,753
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 665 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.33 A @ 100 kHz |
| Impedance | 58 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT1V471MHD1TO | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 100% | View |
| UBW1E471MPD1TD | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 83% | View |
| EEU-TP1E471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 76% | View |
| EGXE250ELL471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 74% | View |
| MAL212648471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V AXIAL | 70% | View |
| UBT1C471MPD | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 64% | View |
Submit your RFQ for UBT1V471MHD and get a quote within 24 hours.
