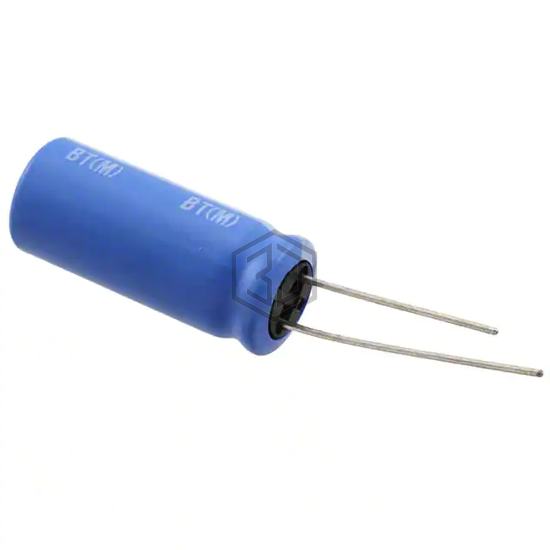

CAP ALUM 470UF 20% 63V RADIAL
UBT1J471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,704
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 730 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.46 A @ 100 kHz |
| Impedance | 97 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216031471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 88% | View |
| 50RX30470MZO12.5X25 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 78% | View |
| EEU-TA1V471SB | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V RADIAL | 75% | View |
| UBX1H471MHL | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 73% | View |
| EEU-TP1E471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 66% | View |
| B41896E6477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 63% | View |
