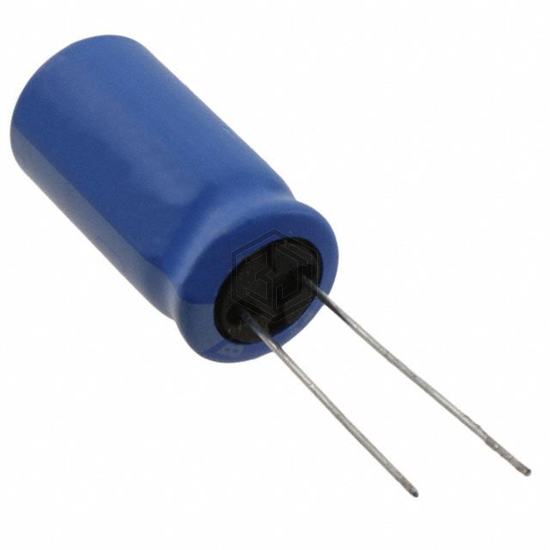

CAP ALUM 330UF 20% 50V RADIAL
UBT1H331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,520
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 665 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.33 A @ 100 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41866C6337M008 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 50V RADIAL | 89% | View |
| UBW1J331MHD1TO | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 86% | View |
| 860130578007 | Würth Elektronik | CAP ALUM 330UF 20% 35V RADIAL | 80% | View |
| UBW1E331MPD1TD | Nichicon | CAP ALUM 330UF 20% 25V RADIAL | 67% | View |
| MAL211818331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V AXIAL | 65% | View |
| MAL211819331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 100V AXIAL | 57% | View |
