CAP ALUM 100UF 20% 50V RADIAL

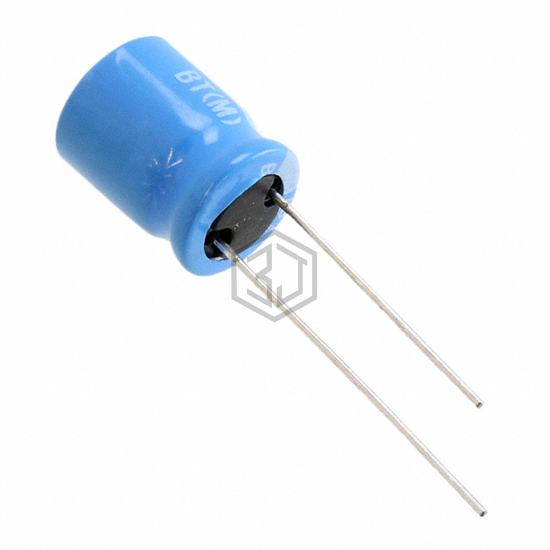

UBT1H101MPD8 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 9,719
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 277.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 100 kHz |
| Impedance | 180 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216061101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 92% | View |
| REH0811101M035K | KYOCERA AVX | CAP ALUM 100UF 20% 35V RADIAL TH | 76% | View |
| MAL211918101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 63V AXIAL | 68% | View |
| 35ZT100MT78X11.5 | Rubycon | CAP ALUM 100UF 20% 35V RADIAL | 68% | View |
| UBX1K101MHL | Nichicon | CAP ALUM 100UF 20% 80V RADIAL | 67% | View |
| 16ZT100M6.3X11 | Rubycon | CAP ALUM 100UF 20% 16V RADIAL | 54% | View |
Submit your RFQ for UBT1H101MPD8 and get a quote within 24 hours.
