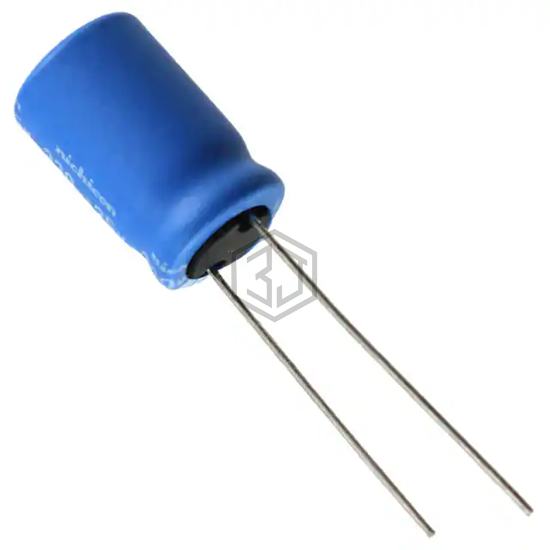

CAP ALUM 330UF 20% 25V RADIAL
UBT1E331MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 108
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 472.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 945 mA @ 100 kHz |
| Impedance | 75 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT1V331MPD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 91% | View |
| UBW1V331MPD1TD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 91% | View |
| EEU-TP1E331B | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 90% | View |
| 600D337G030DL5 | Vishay Sprague | CAP ALUM 330UF 30V AXIAL | 88% | View |
| B41896C7337M008 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 35V RADIAL | 79% | View |
| 63RX30330MG412.5X25 | Rubycon | CAP ALUM 330UF 20% 63V RADIAL | 72% | View |
Submit your RFQ for UBT1E331MPD and get a quote within 24 hours.
