CAP ALUM 220UF 20% 25V RADIAL

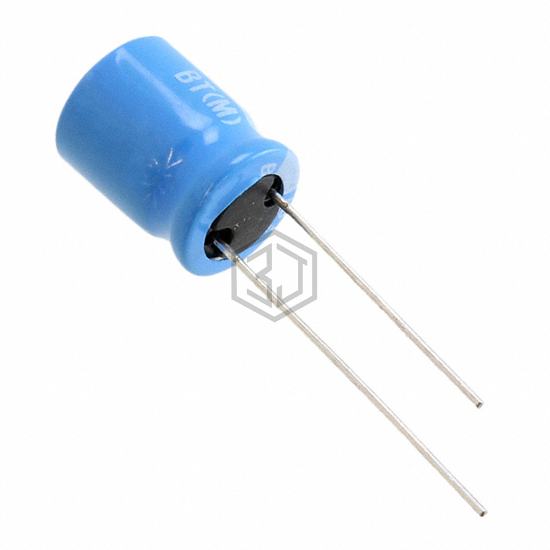

UBT1E221MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,003
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz |
| Ripple Current @ High Frequency | 680 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RUK221M1EBK-1320S | Surge | CAP ALUM 25V POLAR | 95% | View |
| RUK221M1VBK-1325S | Surge | CAP ALUM 35V POLAR | 85% | View |
| UBT1C221MPD8TD | Nichicon | CAP ALUM 220UF 20% 16V RADIAL | 79% | View |
| 860130374004 | Würth Elektronik | CAP ALUM 220UF 20% 16V RADIAL | 78% | View |
| UBX1H221MPL1TD | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 76% | View |
| EGXL350ELL221MJ16S | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 71% | View |
Submit your RFQ for UBT1E221MPD1TD and get a quote within 24 hours.
