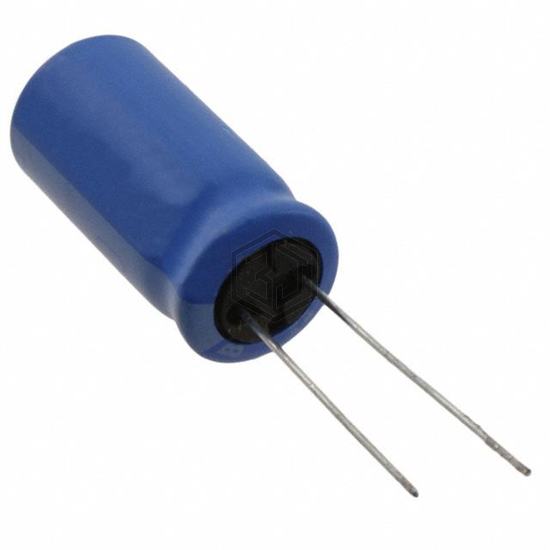

CAP ALUM 2200UF 20% 10V RADIAL
UBT1A222MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,813
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.172 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.75 A @ 100 kHz |
| Impedance | 33 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT1A222MHD8TO | Nichicon | CAP ALUM 2200UF 20% 10V RADIAL | 100% | View |
| MAL214094226E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V RADIAL | 89% | View |
| MAL214034222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V RADIAL | 89% | View |
| EEU-TA1C222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 16V RADIAL | 73% | View |
| UBX1C222MHL | Nichicon | CAP ALUM 2200UF 20% 16V RADIAL | 68% | View |
| B41866E5228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 25V RADIAL | 67% | View |
Submit your RFQ for UBT1A222MHD1TO and get a quote within 24 hours.
