CAP ALUM 470UF 20% 35V SMD

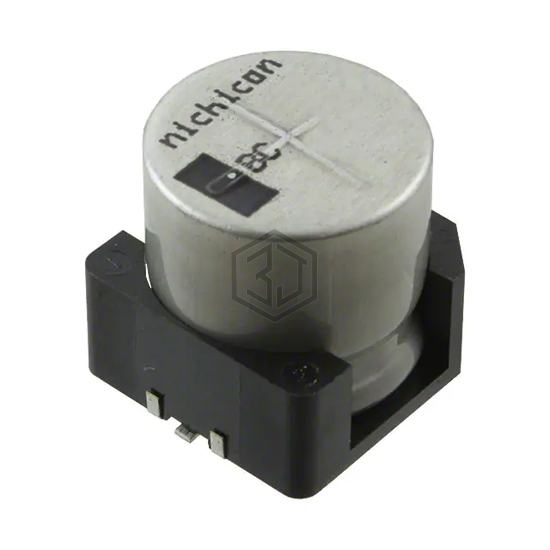

UBC1V471MNS1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 63
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 502.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for UBC1V471MNS1MS and get a quote within 24 hours.
