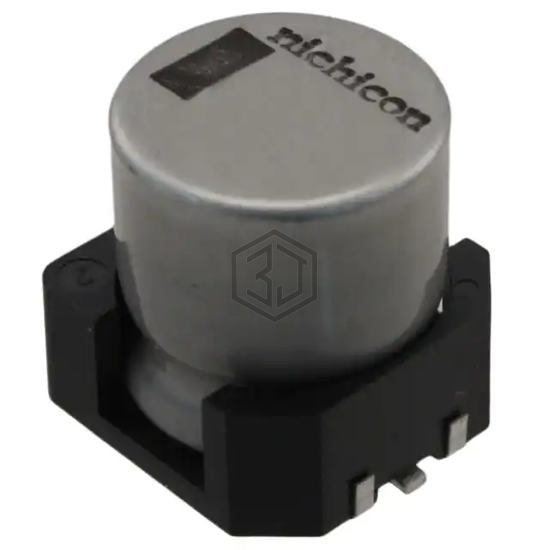

CAP ALUM 220UF 20% 35V SMD
UBC1V221MNS1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,822
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 368.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UBC1V221MNS1MS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216099001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V SMD | 100% | View |
| VUJ221M1VTR-1313S | SURGE | CAP ALUM 220UF 20% 35V SMD | 100% | View |
| VUJ221M1HTR-1616S | SURGE | CAP ALUM 220UF 20% 50V SMD | 85% | View |
| MAL216099103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V SMD | 85% | View |
| MAL216099805E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V SMD | 69% | View |
| MAL226099704E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 80V SMD | 65% | View |
Submit your RFQ for UBC1V221MNS1MS and get a quote within 24 hours.
