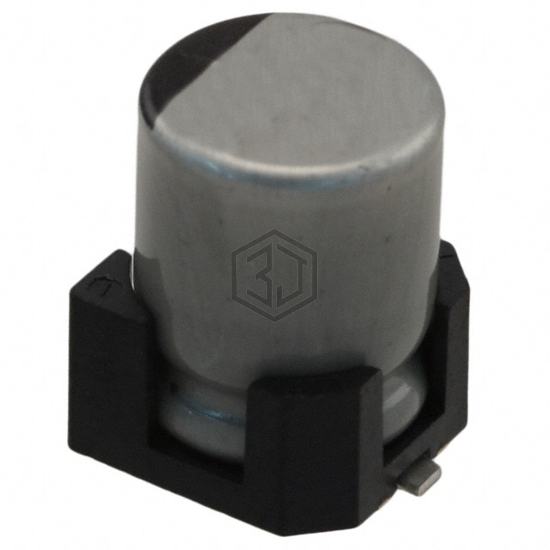

CAP ALUM 33UF 20% 50V SMD
UBC1H330MNS1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,063
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 46.9 mA @ 120 Hz |
| Ripple Current @ High Frequency | 70 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UBC1H330MNS1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ330M1HTR-0810S | Surge | CAP ALUM 50V POLAR | 100% | View |
| UBC1H470MNS1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 69% | View |
| VUJ470M1VTR-0810S | Surge | CAP ALUM 35V POLAR | 69% | View |
| VUJ470M1HTR-1010S | Surge | CAP ALUM 50V POLAR | 69% | View |
| UBC1V470MNS1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 54% | View |
Submit your RFQ for UBC1H330MNS1GS and get a quote within 24 hours.
