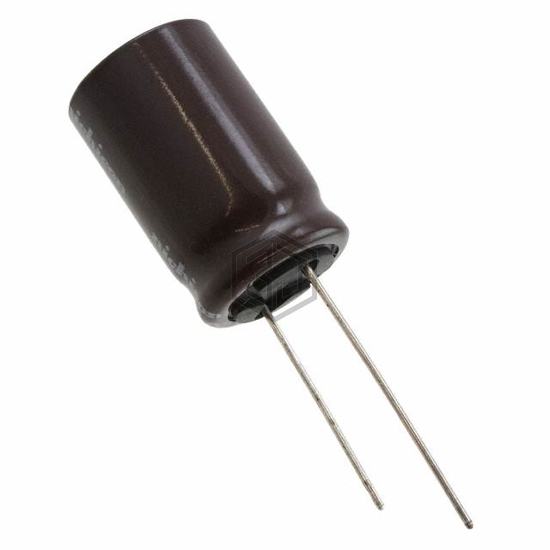

CAP ALUM 39UF 20% 400V RADIAL
UAS2G390MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 78
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 255 mA @ 120 Hz |
| Ripple Current @ High Frequency | 408 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKWB401ELL390MK20S | Chemi-Con | CAP ALUM 39UF 20% 400V TH | 83% | View |
| 420TXW39MEFC12.5X30 | Rubycon | CAP ALUM 39UF 20% 420V RADIAL | 80% | View |
| 350TXW39MEFC8X45 | Rubycon | CAP ALUM 39UF 20% 350V RADIAL | 80% | View |
| 450LXW39MEFR14.5X20 | Rubycon | CAP ALUM 39UF 20% 450V RADIAL | 68% | View |
| UCY2D390MPD | Nichicon | CAP ALUM 39UF 20% 200V RADIAL | 62% | View |
| MAL225959399E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 39UF 20% 500V SNAP | 60% | View |
Submit your RFQ for UAS2G390MHD and get a quote within 24 hours.
