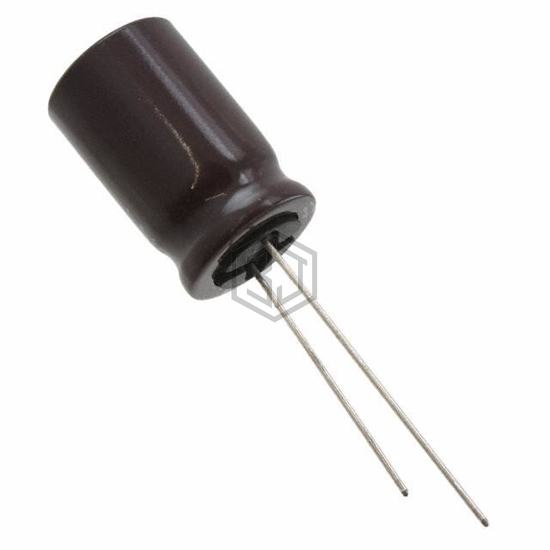

CAP ALUM 22UF 20% 400V RADIAL
UAS2G220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 1,468
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 165 mA @ 120 Hz |
| Ripple Current @ High Frequency | 264 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50RX3022M8X11.5 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 75% | View |
| 160LLE22MEFC10X12.5 | Rubycon | CAP ALUM 22UF 20% 160V RADIAL | 67% | View |
| EKXE161ELL220MJC5S | United Chemi-Con | CAP ALUM 22UF 20% 160V RADIAL TH | 63% | View |
| MW2W220MPI1620R | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 59% | View |
| SEK220M050ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
| 630D226M035CC2A | Vishay Sprague | CAP ALUM 22UF 20% 35V AXIAL | 56% | View |
Submit your RFQ for UAS2G220MHD and get a quote within 24 hours.
