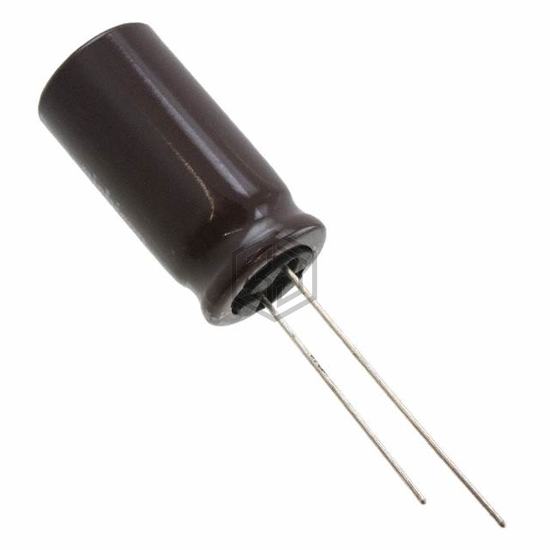

CAP ALUM 82UF 20% 200V RADIAL
UAS2D820MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 8,160
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 576 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860040775005 | Würth Elektronik | CAP ALUM 82UF 20% 63V RADIAL | 74% | View |
| EKZE630ELL820MH15D | United Chemi-Con | CAP ALUM 82UF 20% 63V RADIAL | 68% | View |
| EKXJ251ELL820MJ40S | United Chemi-Con | CAP ALUM 82UF 20% 250V RADIAL | 67% | View |
| UCY2D820MHD3 | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 63% | View |
| ELXV500ELL820MH15D | United Chemi-Con | CAP ALUM 82UF 20% 50V RADIAL | 62% | View |
| 100ZLJ82M10X16 | Rubycon | CAP ALUM 82UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for UAS2D820MHD1TO and get a quote within 24 hours.
