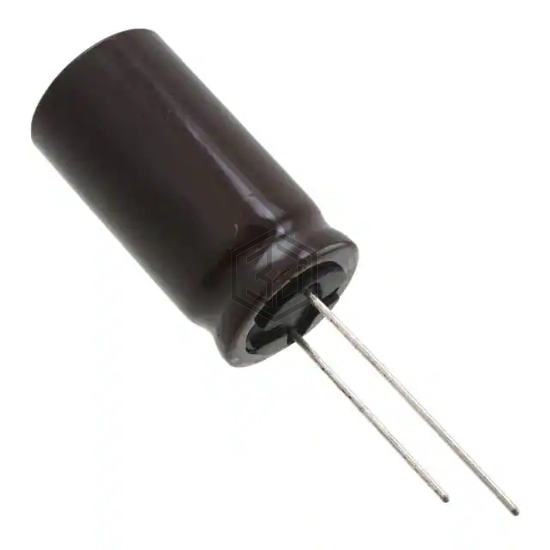

CAP ALUM 180UF 20% 200V RADIAL
UAS2D181MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,246
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz |
| Ripple Current @ High Frequency | 960 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGJ2Z181MELA15 | Nichicon | CAP ALUM 180UF 20% 180V SNAP | 88% | View |
| EGXF101ELL181MU20S | United Chemi-Con | CAP ALUM 180UF 20% 100V RAD TH | 70% | View |
| 187KXM100MQU | Cornell Dubilier / Illinois Capacitor | CAP ALUM 180UF 20% 100V RADIAL | 68% | View |
| EEU-FR1H181L | Panasonic Electronic Components | CAP ALUM 180UF 20% 50V RADIAL | 57% | View |
| 16YXG180MEFCT16.3X11 | Rubycon | CAP ALUM 180UF 20% 16V RADIAL | 56% | View |
| B43504A5187M002 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 54% | View |
Submit your RFQ for UAS2D181MHD and get a quote within 24 hours.
