CAP ALUM 150UF 20% 200V RADIAL

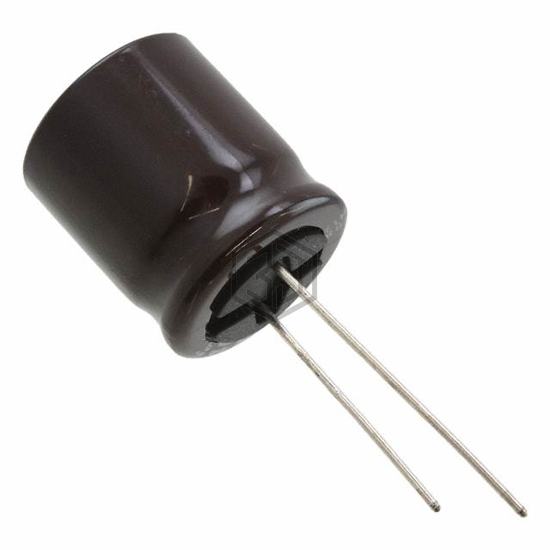

UAS2D151MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 1,877
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 460 mA @ 120 Hz |
| Ripple Current @ High Frequency | 736 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ201ELL151MM20S | United Chemi-Con | CAP ALUM 150UF 20% 200V RADIAL | 100% | View |
| MALREKB00JG315M00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 160V RADIAL | 90% | View |
| EKYB500ELL151MH15D | United Chemi-Con | CAP ALUM 150UF 20% 50V RADIAL | 68% | View |
| MAL215038151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 63V RADIAL | 64% | View |
| MAL216356151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 57% | View |
| 672D157H050EK5C | Vishay Sprague | CAP ALUM 150UF 50V RADIAL | 56% | View |
Submit your RFQ for UAS2D151MHD6TN and get a quote within 24 hours.
