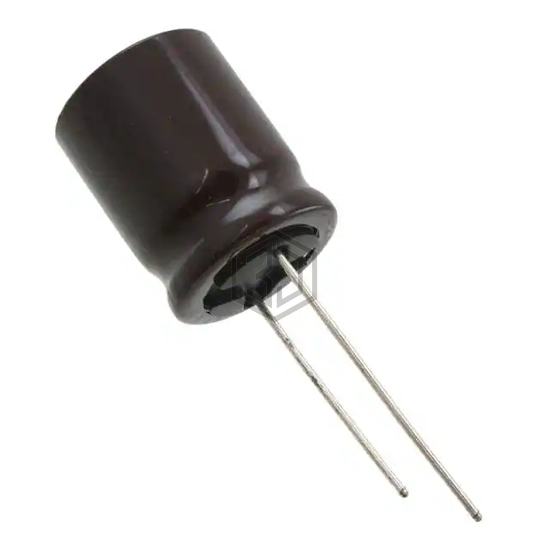

CAP ALUM 100UF 20% 200V RADIAL
UAS2D101MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 5,133
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 430 mA @ 120 Hz |
| Ripple Current @ High Frequency | 688 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ201ELL101ML25S | United Chemi-Con | CAP ALUM 100UF 20% 200V RADIAL | 86% | View |
| 50YXJ100MT78X11.5 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 71% | View |
| 100ZL100MEFCG110X23 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 71% | View |
| B41858C9107M000 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 100V RADIAL | 69% | View |
| 860080574007 | Würth Elektronik | CAP ALUM 100UF 20% 35V RADIAL | 65% | View |
| 50YXG100MTA8X11.5 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 63% | View |
Submit your RFQ for UAS2D101MHD6 and get a quote within 24 hours.
