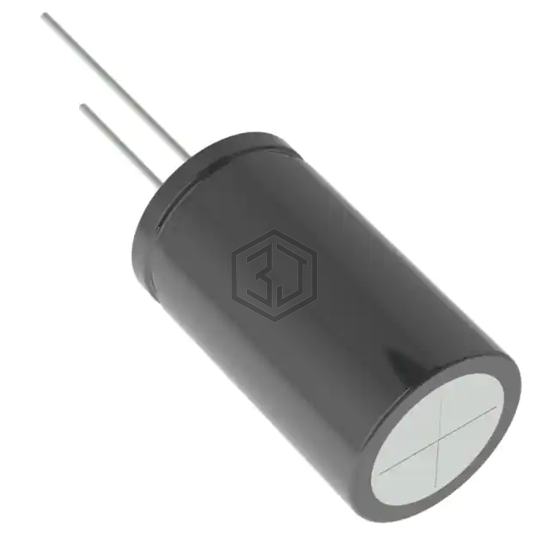

CAP ALUM 33UF 20% 200V RADIAL
UAQ2D330MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 1,927
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 256 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG161ELL330MJ20S | United Chemi-Con | CAP ALUM 33UF 20% 160V RADIAL | 90% | View |
| B43866C2336M | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 250V RADIAL | 88% | View |
| UPJ2A330MPD6/TD | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 75% | View |
| UBW1H330MPD1TD | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 74% | View |
| UKL1V330KEDANATA | Nichicon | CAP ALUM 33UF 20% 35V RADIAL | 74% | View |
| 6.3ZLG33MEFCTZ4X7 | Rubycon | CAP ALUM 33UF 20% 6.3V RADIAL | 55% | View |
