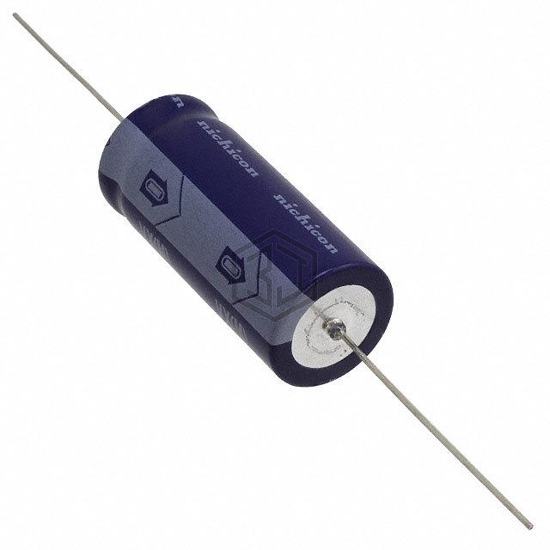

CAP ALUM 10000UF 20% 10V AXIAL
TVX1A103MCD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 10V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Axial, Can.
In Stock: 6,026
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7025 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia x 1.693" L (18.00mm x 43.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TVX1A103MCD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHE1A103MHT | Nichicon | CAP ALUM 10000UF 20% 10V RADIAL | 82% | View |
| LGU1E103MELZ | Nichicon | CAP ALUM 10000UF 20% 25V SNAP | 73% | View |
| 382LX103M080N052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 80V SNAP | 56% | View |
| 109LBB050M2ED | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 50V SNAP | 56% | View |
| EKMH350VSN103MQ35U | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 56% | View |
| MAL215618103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 63V SNAP | 52% | View |
