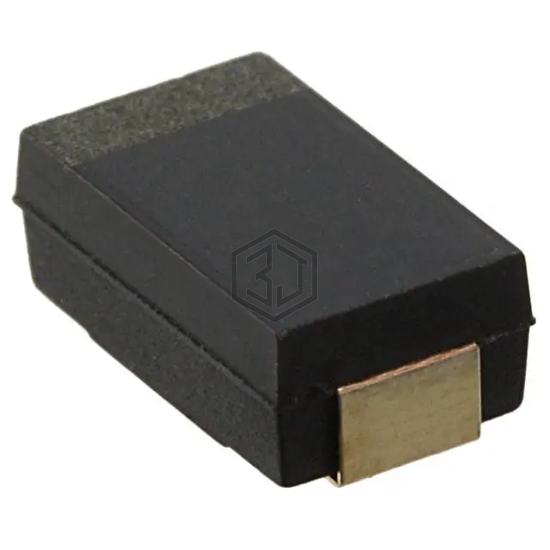

CAP ALUM POLY 47UF 20% 16V SMD
RVA1C470MNG is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 47UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case 2917 (7343 Metric).
In Stock: 6,835
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 55mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
RVA1C470MNG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEF-HX1C470R | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 16V SMD | 100% | View |
| EEF-CT1C470R | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 16V SMD | 100% | View |
| RVB1C470MNG | Nichicon | CAP ALUM POLY 47UF 20% 16V SMD | 100% | View |
| RWA1E470MEG | Nichicon | CAP ALUM POLY 47UF 20% 25V SMD | 71% | View |
| EEF-CS1A470R | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 10V SMD | 70% | View |
| A700V476M006ATE018 | KEMET | CAP ALUM POLY 47UF 20% 6.3V SMD | 56% | View |
Submit your RFQ for RVA1C470MNG and get a quote within 24 hours.
