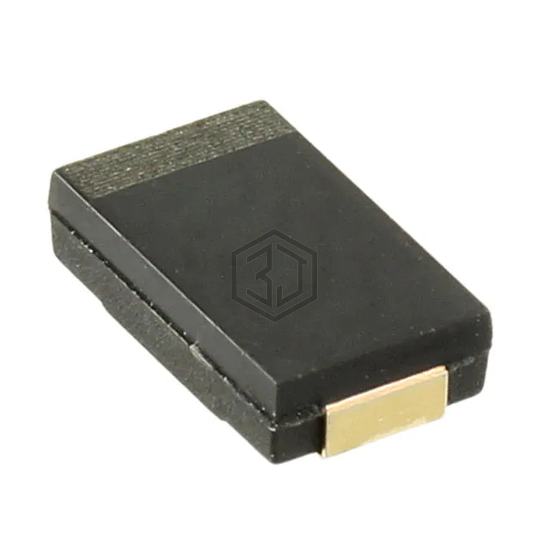

CAP ALUM POLY 27UF 20% 16V SMD
RUB1C270MLG is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 27UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case 2917 (7343 Metric).
In Stock: 9,881
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
RUB1C270MLG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RVB1C270MNG | Nichicon | CAP ALUM POLY 27UF 20% 16V SMD | 100% | View |
| RUA1C270MLG | Nichicon | CAP ALUM POLY 27UF 20% 16V SMD | 100% | View |
| RVA1C270MNG | Nichicon | CAP ALUM POLY 27UF 20% 16V SMD | 100% | View |
| EEF-HX1C220R | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 16V SMD | 84% | View |
| 875015519004 | Würth Elektronik | CAP ALUM POLY 33UF 20% 25V SMD | 55% | View |
| A700V336M010ATE028 | KEMET | CAP ALUM POLY 33UF 20% 10V SMD | 54% | View |
