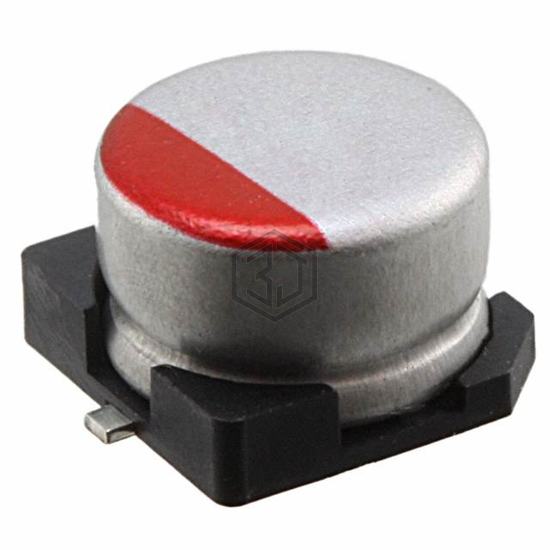

CAP ALUM POLY 15UF 20% 25V SMD
RSL1E150MCN1GB is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 15UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,668
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 55mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Surface Mount Land Size | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RKS1E150MCNAFEGS | Nichicon | CAP ALUM POLY 15UF 20% 25V SMD | 95% | View |
| RKS1V150MCNAFEGS | Nichicon | CAP ALUM POLY 15UF 20% 35V SMD | 84% | View |
| 875105444002 | Würth Elektronik | CAP ALUM POLY 15UF 20% 20V SMD | 77% | View |
| RKS1H150MCNAFEGS | Nichicon | CAP ALUM POLY 15UF 20% 50V SMD | 76% | View |
| 875105359002 | Würth Elektronik | CAP ALUM POLY 15UF 20% 16V SMD | 70% | View |
| PCV2B150MCL1GS | Nichicon | CAP ALUM POLY 15UF 20% 125V SMD | 66% | View |
Submit your RFQ for RSL1E150MCN1GB and get a quote within 24 hours.
