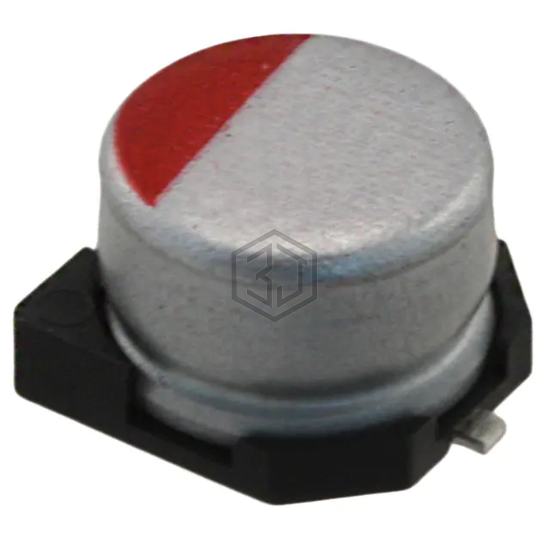

CAP ALUM POLY 330UF 20% 2.5V SMD
RSL0E331MCN1GB is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 330UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 16mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
| Surface Mount Land Size | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
