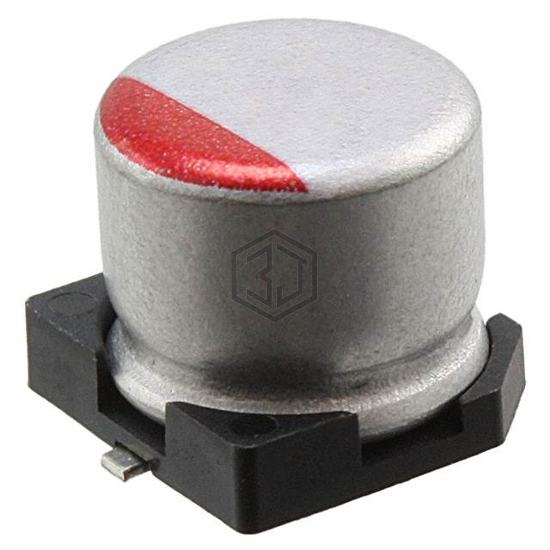

CAP ALUM POLY 330UF 20% 4V SMD
RSB0G331MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 330UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 2,218
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 11mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXF2R5ARA331ME61G | United Chemi-Con | CAP ALUM POLY 330UF 20% 2.5V SMD | 79% | View |
| 94SVP337X06R3F8 | Vishay Sprague | CAP ALUM POLY 330UF 20% 6.3V SMD | 78% | View |
| RPA1A331MCN1GS | Nichicon | CAP ALUM POLY 330UF 20% 10V SMD | 78% | View |
| MAL218097304E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 330UF 20% 6.3V SMD | 78% | View |
| 875075155004 | Würth Elektronik | CAP ALUM POLY 330UF 20% 6.3V SMD | 70% | View |
| 4SVP330M | Panasonic Electronic Components | CAP ALUM POLY 330UF 20% 4V SMD | 66% | View |
