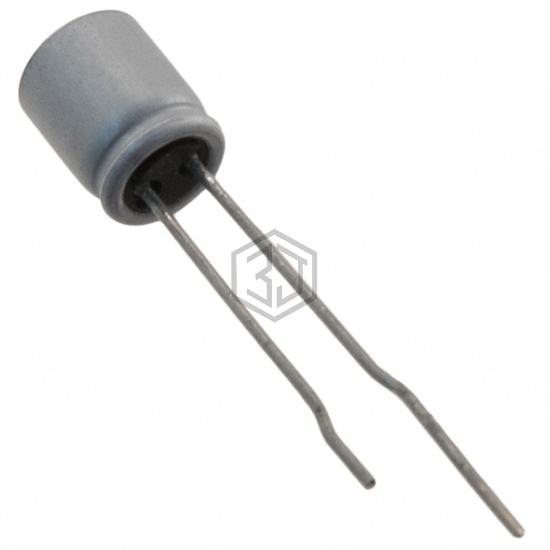

CAP ALUM POLY 560UF 20% 6.3V T/H
RS80J561MDNASQJT is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 560UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 95,920
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RS80J561MDNASQ | Nichicon | CAP ALUM POLY 560UF 20% 6.3V T/H | 100% | View |
| UPR0J561MP26308 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 98% | View |
| APSE6R3ETD561MF08S | United Chemi-Con | CAP ALUM POLY 560UF 20% 6.3V T/H | 98% | View |
| RS80G561MDN1JT | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 86% | View |
| 870025174007 | Würth Elektronik | CAP ALUM POLY 560UF 20% 6.3V T/H | 83% | View |
| 567ULR6R3MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 6.3V T/H | 80% | View |
