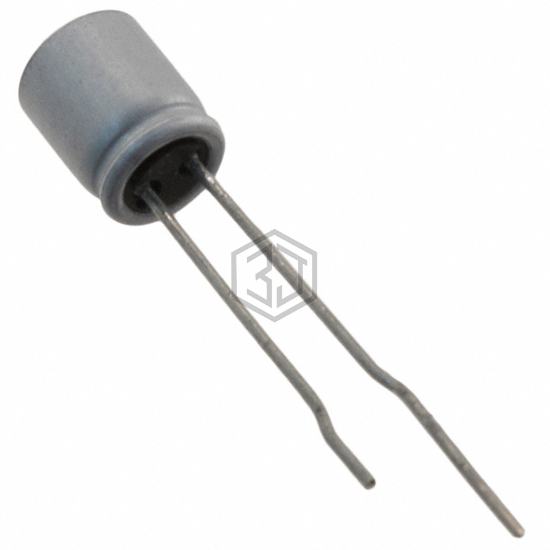

CAP ALUM POLY 470UF 20% 6.3V T/H
RS80J471MDN1JT is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 470UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,361
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APSC6R3ETD471MH08S | United Chemi-Con | CAP ALUM POLY 470UF 20% 6.3V T/H | 96% | View |
| RL80J471MDN1KX | Nichicon | CAP ALUM POLY 470UF 20% 6.3V T/H | 94% | View |
| 6SEPC470MX+TSS | Panasonic Electronic Components | CAP ALUM POLY 470UF 20% 6.3V T/H | 83% | View |
| RNE1C471MDNASQKX | Nichicon | CAP ALUM POLY 470UF 20% 16V T/H | 75% | View |
| URH1E471MNN1012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
| UPR1C471MP26312L | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
Submit your RFQ for RS80J471MDN1JT and get a quote within 24 hours.
