CAP ALUM POLY 1200UF 2.5V TH

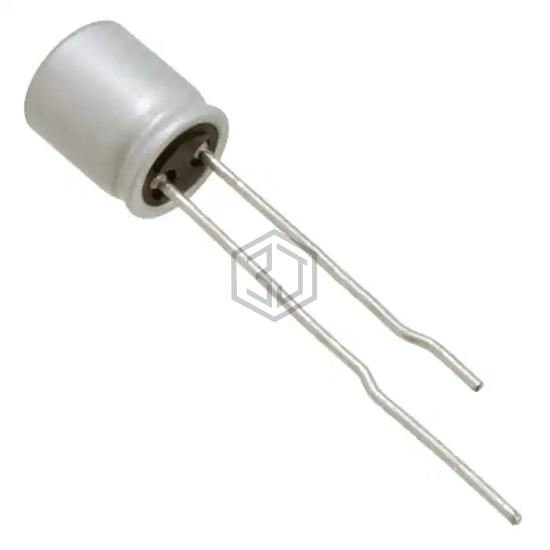

RS80E122MDN1JT is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 1200UF 2.5V TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 4,128
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 560 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RL80E122MDN1KX | Nichicon | CAP ALUM POLY 1200UF 2.5V T/H | 96% | View |
| RR70G122MDN1PH | Nichicon | CAP ALUM POLY 1200UF 20% 4V T/H | 82% | View |
| RNE0J122MDN1KX | Nichicon | CAP ALUM POLY 1200UF 6.3V T/H | 78% | View |
| 128ULR4R0MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1200UF 20% 4V T/H | 69% | View |
| PLG1A122MDO1 | Nichicon | CAP ALUM POLY 1200UF 20% 10V T/H | 68% | View |
| 4SEP1200M | Panasonic Electronic Components | CAP ALUM POLY 1200UF 20% 4V T/H | 68% | View |
