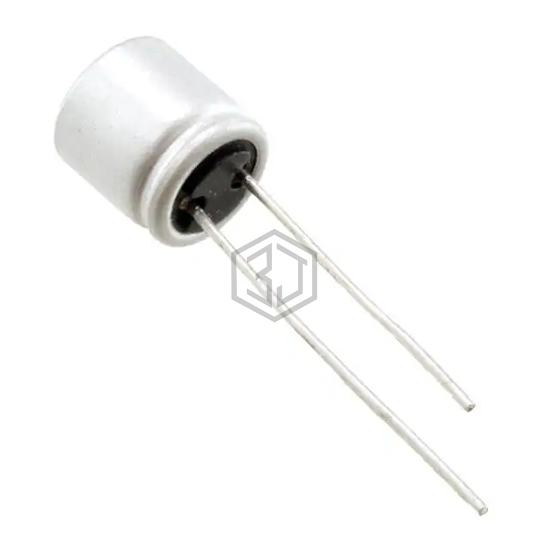

CAP ALUM POLY 100UF 20% 16V T/H
RS61C101MCS1JT is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 100UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,806
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 24mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 249 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.49 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPE1C101MCG6305 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 99% | View |
| 870235373001 | Würth Elektronik | CAP ALUM POLY 100UF 20% 16V T/H | 83% | View |
| 107UER016MED | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 100UF 20% 16V T/H | 83% | View |
| 107ULR016MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 100UF 20% 16V T/H | 83% | View |
| APS-250ELL101MJC5S | United Chemi-Con | CAP ALUM POLY 100UF 20% 25V T/H | 64% | View |
| A759KS107M1EAAE025 | KEMET | CAP ALUM POLY 100UF 20% 25V TH | 55% | View |
