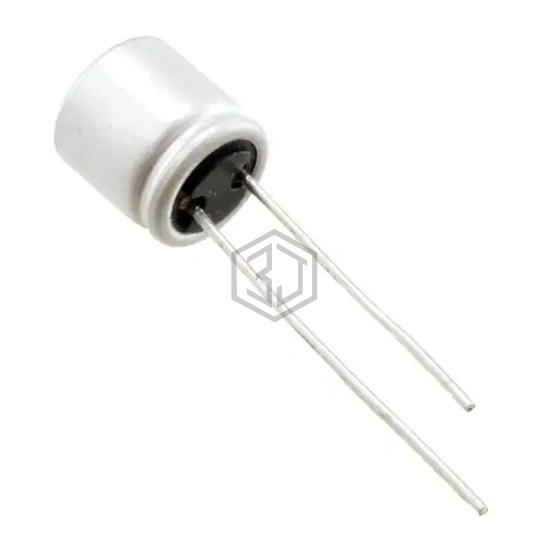

CAP ALUM POLY 150UF 20% 10V T/H
RS61A151MCN1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 150UF 20% 10V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,537
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A758BG187M0JAAE018 | KEMET | CAP ALUM POLY 180UF 20% 6.3V T/H | 72% | View |
| PLX1D151MDL1 | Nichicon | CAP ALUM POLY 150UF 20% 20V T/H | 69% | View |
| 16SEP150M+T | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 16V T/H | 69% | View |
| RNS0J151MDN1PX | Nichicon | CAP ALUM POLY 150UF 20% 6.3V T/H | 65% | View |
| RNS0J151MDN1 | Nichicon | CAP ALUM POLY 150UF 20% 6.3V T/H | 65% | View |
| A750MV157M1JAAE022 | KEMET | CAP ALUM POLY 150UF 20% 63V T/H | 62% | View |
Submit your RFQ for RS61A151MCN1 and get a quote within 24 hours.
