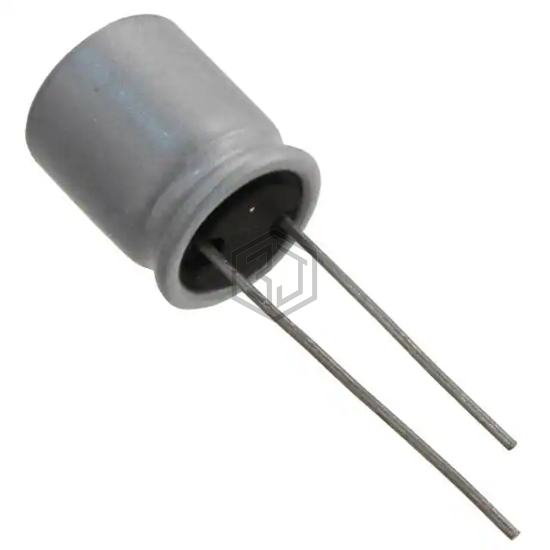

CAP ALUM POLY 1500UF 2.5V TH
RR70E152MDN1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 1500UF 2.5V TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 8,099
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 610 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RNU0E152MDN1PX | Nichicon | CAP ALUM POLY 1500UF 2.5V T/H | 97% | View |
| RR50E152MDN1PH | Nichicon | CAP ALUM POLY 1500UF 2.5V TH | 92% | View |
| A750KR158M0EAAE007 | KEMET | CAP ALUM POLY 1500UF 20% 2.5V TH | 83% | View |
| RNU0J152MDN1 | Nichicon | CAP ALUM POLY 1500UF 6.3V T/H | 79% | View |
| RNU0J152MDN1PH | Nichicon | CAP ALUM POLY 1500UF 6.3V T/H | 79% | View |
| A755MS158M0EAAE013 | KEMET | CAP ALUM POLY 1500UF 20% 2.5V TH | 76% | View |
