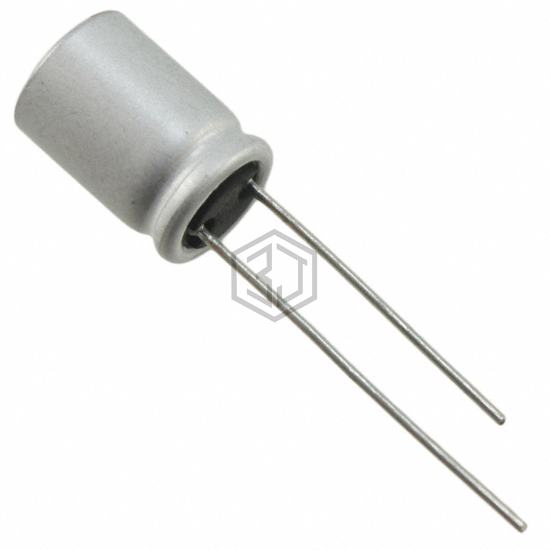

CAP ALUM POLY 390UF 20% 6.3V T/H
RR50J391MDN1LX is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 390UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,905
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 663 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.63 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RR70J391MDN1KX | Nichicon | CAP ALUM POLY 390UF 20% 6.3V T/H | 92% | View |
| APSA6R3ETD391MHB5S | United Chemi-Con | CAP ALUM POLY 390UF 20% 6.3V T/H | 91% | View |
| RNS0J391MDN1PX | Nichicon | CAP ALUM POLY 390UF 20% 6.3V T/H | 89% | View |
| 870135174001 | Würth Elektronik | CAP ALUM POLY 390UF 20% 6.3V T/H | 79% | View |
| UPC6K391MPZ0508 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 72% | View |
| APSG250ELL391MJB5S | United Chemi-Con | CAP ALUM POLY 390UF 20% 25V T/H | 62% | View |
