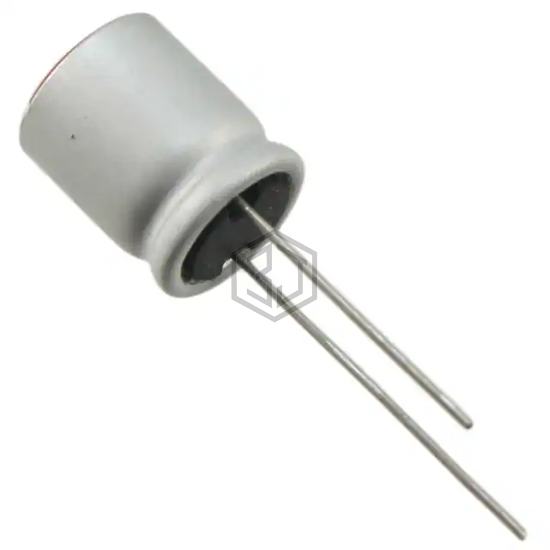

CAP ALUM POLY 82UF 20% 4V T/H
RR50G821MDN1PH is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 82UF 20% 4V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 2,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 722 mA @ 120 Hz |
| Ripple Current @ High Frequency | 7.22 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RR71C680MDN1 | Nichicon | CAP ALUM POLY 68UF 20% 16V T/H | 60% | View |
| RR71C680MDN1KX | Nichicon | CAP ALUM POLY 68UF 20% 16V T/H | 60% | View |
| RR71C680MDN1PX | Nichicon | CAP ALUM POLY 68UF 20% 16V T/H | 60% | View |
| A759SZ826M2EAAE150 | KEMET | CAP ALUM POLY 82UF 20% 250V T/H | 54% | View |
| RL81C101MDN1PX | Nichicon | CAP ALUM POLY 100UF 20% 16V T/H | 54% | View |
| RL81C101MDN1 | Nichicon | CAP ALUM POLY 100UF 20% 16V T/H | 54% | View |
Submit your RFQ for RR50G821MDN1PH and get a quote within 24 hours.
