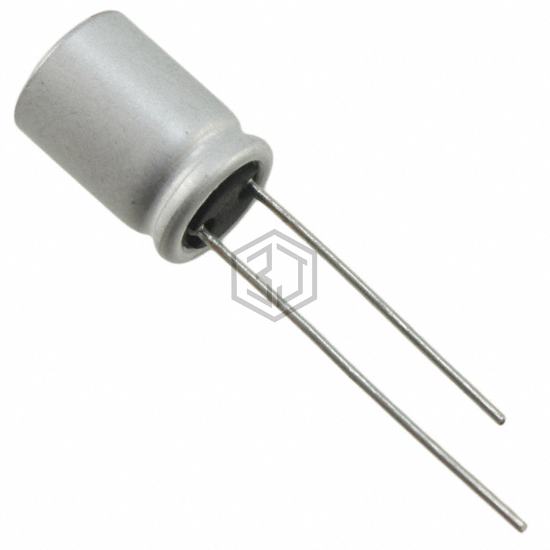

CAP ALUM POLY 1000UF 2.5V TH
RR50E102MDN1PX is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 1000UF 2.5V TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 6,285
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 663 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.63 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RR50E102MDN1 | Nichicon | CAP ALUM POLY 1000UF 2.5V TH | 100% | View |
| RR50E102MDN1KX | Nichicon | CAP ALUM POLY 1000UF 2.5V TH | 100% | View |
| APSC2R5ELL102MH08S | United Chemi-Con | CAP ALUM POLY 1000UF 2.5V T/H | 97% | View |
| PLF0G102MDO1 | Nichicon | CAP ALUM POLY 1000UF 20% 4V T/H | 81% | View |
| 108ULR2R5MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1000UF 2.5V T/H | 79% | View |
| A750KK108M0EAAE012 | KEMET | CAP ALUM POLY 1000UF 2.5V T/H | 76% | View |
Submit your RFQ for RR50E102MDN1PX and get a quote within 24 hours.
