CAP ALUM POLY 22UF 20% 25V SMD

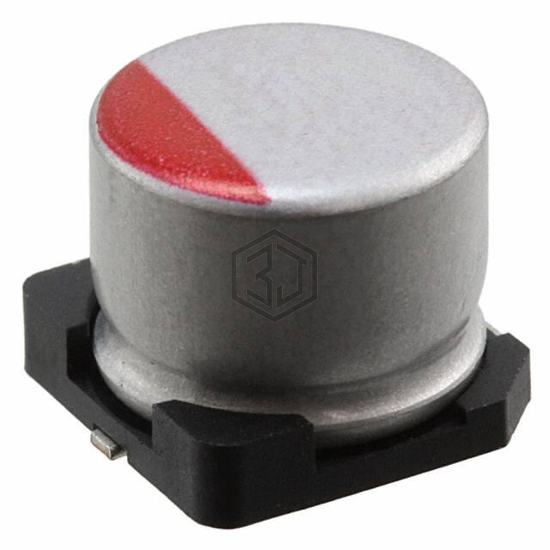

RPS1E220MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,542
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 50mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCF1E220MCL1GS | Nichicon | CAP ALUM POLY 22UF 20% 25V SMD | 93% | View |
| PCF1D220MCL1GS | Nichicon | CAP ALUM POLY 22UF 20% 20V SMD | 89% | View |
| MAL218497504E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 22UF 20% 16V SMD | 70% | View |
| PVH-35V220MH80E-R2 | Elna America | CAP ALUM POLY 22UF 20% 35V SMD | 67% | View |
| A766EB226M1DLAE060 | KEMET | CAP ALUM POLY 22UF 20% 20V SMD | 66% | View |
| 875075855002 | Würth Elektronik | CAP ALUM POLY 22UF 20% 63V SMD | 62% | View |
Submit your RFQ for RPS1E220MCN1GS and get a quote within 24 hours.
