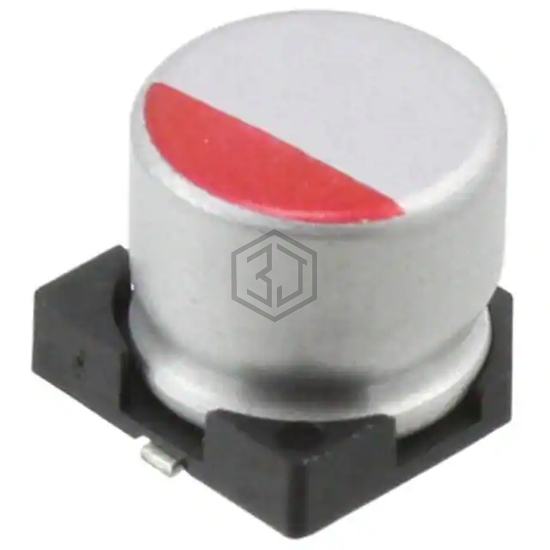

CAP ALUM POLY 47UF 20% 10V SMD
RPS1A470MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 47UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,711
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCS0J470MCL1GS | Nichicon | CAP ALUM POLY 47UF 20% 6.3V SMD | 72% | View |
| PVH-20V470MG70E-R2 | Elna America | CAP ALUM POLY 47UF 20% 20V SMD | 70% | View |
| PCG1C470MCL1GS | Nichicon | CAP ALUM POLY 47UF 20% 16V SMD | 70% | View |
| 6SVPA47MAA | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 6.3V SMD | 66% | View |
| 94SVP476X0020E7 | Vishay Sprague | CAP ALUM POLY 47UF 20% 20V SMD | 66% | View |
| 20SVPA47M | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 20V SMD | 62% | View |
Submit your RFQ for RPS1A470MCN1GS and get a quote within 24 hours.
