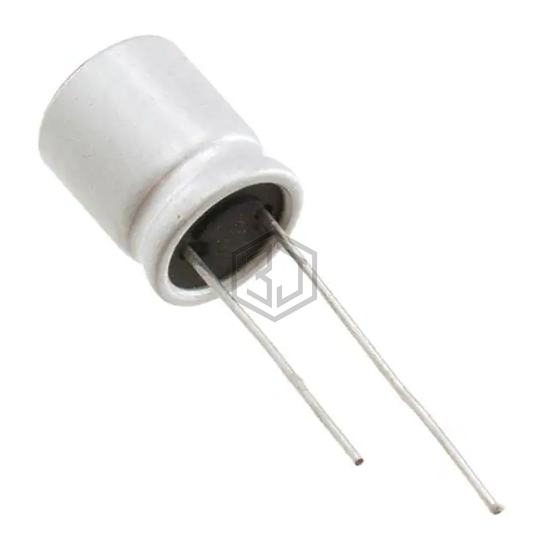

CAP ALUM POLY 39UF 20% 63V T/H
RNU1J390MDN1PH is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 39UF 20% 63V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,383
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RNU1J390MDN1 | Nichicon | CAP ALUM POLY 39UF 20% 63V T/H | 100% | View |
| RNU1H390MDN1KX | Nichicon | CAP ALUM POLY 39UF 20% 50V T/H | 89% | View |
| RNU1H390MDN1PX | Nichicon | CAP ALUM POLY 39UF 20% 50V T/H | 89% | View |
| 63SXE39M+S | Panasonic Electronic Components | CAP ALUM POLY 39UF 20% 63V TH | 83% | View |
| 870135674001 | Würth Elektronik | CAP ALUM POLY 39UF 20% 35V T/H | 66% | View |
| PLF1D390MCL2TD | Nichicon | CAP ALUM POLY 39UF 20% 20V T/H | 63% | View |
