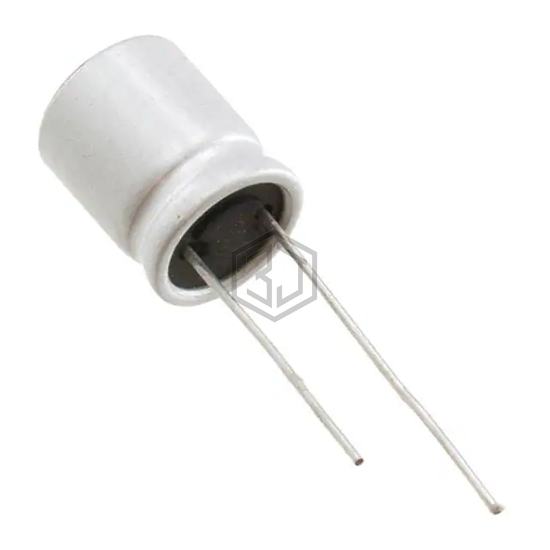

CAP ALUM POLY 680UF 20% 16V T/H
RNU1C681MDN1PH is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 680UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,276
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 610 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPE1C681MP30811RU | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 96% | View |
| UPC1C681MP30811 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 93% | View |
| RL80J681MDN1 | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 76% | View |
| UGV1E681MJ51012RU | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 75% | View |
| UGS1E681MP20816UX | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 73% | View |
| APSC4R0ELL681MHB5S | United Chemi-Con | CAP ALUM POLY 680UF 20% 4V T/H | 71% | View |
Submit your RFQ for RNU1C681MDN1PH and get a quote within 24 hours.
