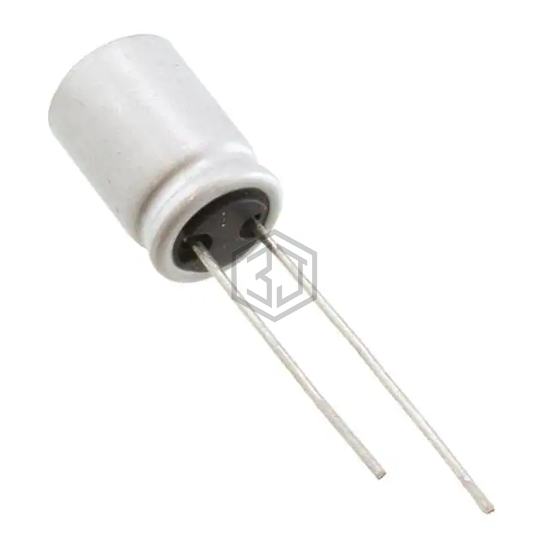

CAP ALUM POLY 220UF 20% 6.3V T/H
RNU0J221MDS1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 220UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,122
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 320 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF0J221MDL4TD | Nichicon | CAP ALUM POLY 220UF 20% 6.3V T/H | 100% | View |
| RNS0J221MDN1KX | Nichicon | CAP ALUM POLY 220UF 20% 6.3V T/H | 91% | View |
| 227ULR010MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 10V T/H | 69% | View |
| A758KK227M1AAAE014 | KEMET | CAP ALUM POLY 220UF 20% 10V T/H | 68% | View |
| A750KS227M1EAAE015 | KEMET | CAP ALUM POLY 220UF 20% 25V T/H | 62% | View |
| 227UER016MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 16V T/H | 62% | View |
