CAP ALUM POLY 68UF 20% 20V T/H

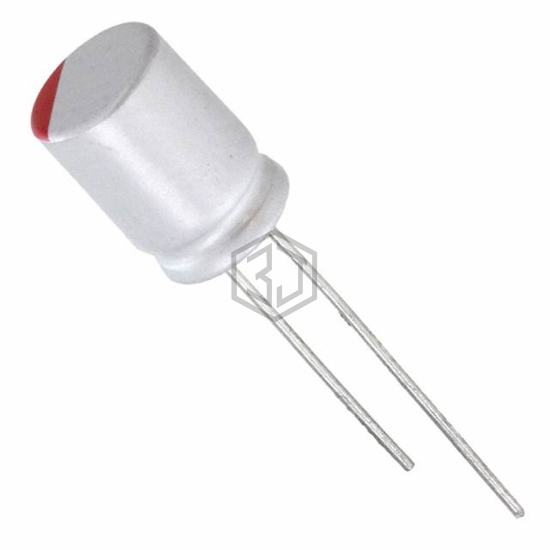

RNS1D680MDN1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 68UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 1,175
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RNS1C680MDN1KX | Nichicon | CAP ALUM POLY 68UF 20% 16V T/H | 93% | View |
| RNU1E680MDN1KX | Nichicon | CAP ALUM POLY 68UF 20% 25V T/H | 93% | View |
| PLV1D680MCL1 | Nichicon | CAP ALUM POLY 68UF 20% 20V T/H | 76% | View |
| 870235674004 | Würth Elektronik | CAP ALUM POLY 68UF 20% 35V T/H | 66% | View |
| 20SEP68M+T | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 20V T/H | 64% | View |
| 32SEPF68M+TSS | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 32V T/H | 63% | View |
