CAP ALUM POLY 47UF 20% 20V T/H

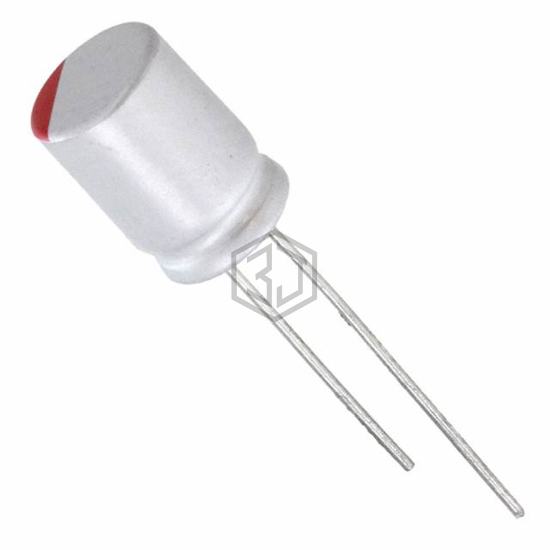

RNS1D470MDN1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 47UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 2,866
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870025574002 | Würth Elektronik | CAP ALUM POLY 47UF 20% 25V T/H | 77% | View |
| PLF1A470MDL4TD | Nichicon | CAP ALUM POLY 47UF 20% 10V T/H | 66% | View |
| PLX1H470MDL1TD | Nichicon | CAP ALUM POLY 47UF 20% 50V T/H | 63% | View |
| 476ULR020MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 47UF 20% 20V T/H | 62% | View |
| 870055674005 | Würth Elektronik | CAP ALUM POLY 47UF 20% 35V T/H | 59% | View |
| A755KS476M1EAAE025 | KEMET | CAP ALUM POLY 47UF 20% 25V T/HL | 58% | View |
