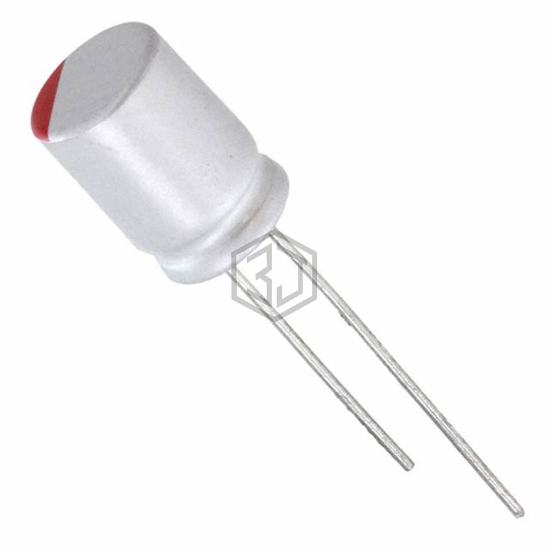

CAP ALUM POLY 47UF 20% 6.3V T/H
RNS0J470MDS1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 47UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,483
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 42mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 205 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RNS0J470MDS1JT | Nichicon | CAP ALUM POLY 47UF 20% 6.3V T/H | 100% | View |
| PLF1A470MDL4TD | Nichicon | CAP ALUM POLY 47UF 20% 10V T/H | 70% | View |
| PLX1H470MDL1TD | Nichicon | CAP ALUM POLY 47UF 20% 50V T/H | 64% | View |
| 870055674005 | Würth Elektronik | CAP ALUM POLY 47UF 20% 35V T/H | 62% | View |
| A755KS476M1EAAE025 | KEMET | CAP ALUM POLY 47UF 20% 25V T/HL | 62% | View |
| 476ALG050MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 47UF 20% 50V T/H | 62% | View |
Submit your RFQ for RNS0J470MDS1 and get a quote within 24 hours.
