CAP ALUM POLY 560UF 20% 16V T/H

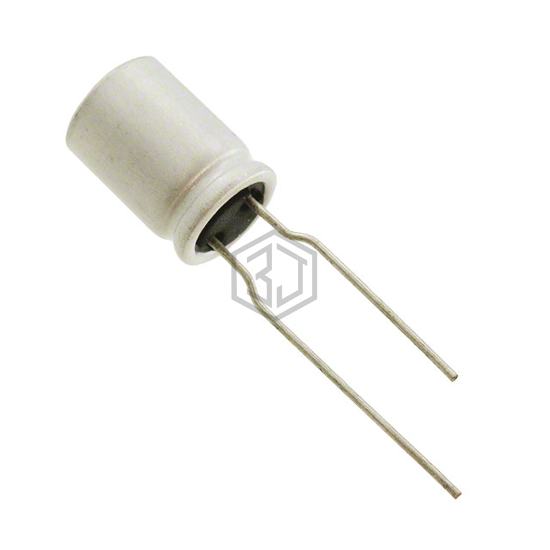

RNE1C561MDNASQ is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 560UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,281
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870235375009 | Würth Elektronik | CAP ALUM POLY 560UF 20% 16V T/H | 83% | View |
| 870025375008 | Würth Elektronik | CAP ALUM POLY 560UF 20% 16V T/H | 83% | View |
| RL80J561MDN1 | Nichicon | CAP ALUM POLY 560UF 20% 6.3V T/H | 73% | View |
| RL80E561MDN1PX | Nichicon | CAP ALUM POLY 560UF 20% 2.5V T/H | 69% | View |
| PLF0G561MDO1 | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 68% | View |
| UPS0J561MQ70808 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 67% | View |
