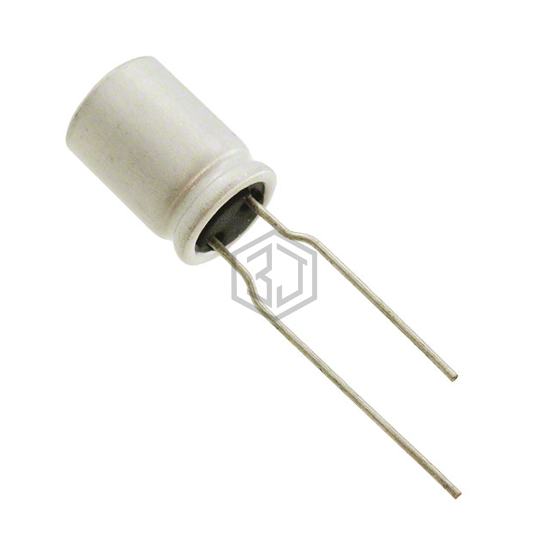

CAP ALUM POLY 470UF 20% 16V T/H
RNE1C471MDNASQ is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 470UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,242
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 540 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UGP1D471MCG0811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 88% | View |
| UGV1E471MNN0811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 77% | View |
| UPS0J471MC40808 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
| RE50G561MDN1KX | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 65% | View |
| A759KS477M1AAAE014 | KEMET | CAP ALUM POLY 470UF 20% 10V TH | 64% | View |
| 6SEPC470MX | Panasonic Electronic Components | CAP ALUM POLY 470UF 20% 6.3V T/H | 62% | View |
