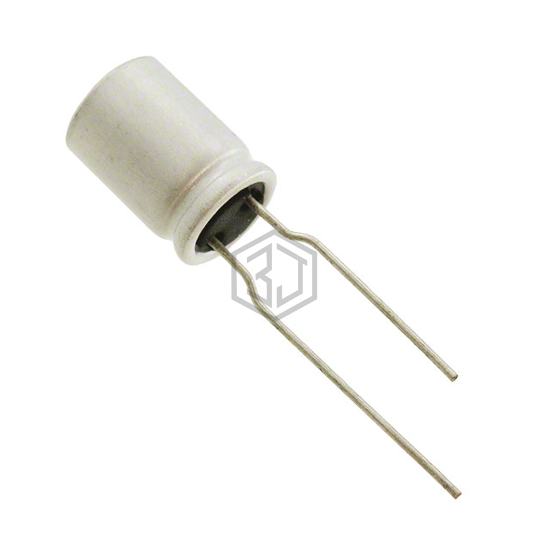

CAP ALUM POLY 220UF 20% 16V T/H
RNE1C221MDN1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 220UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,274
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 13mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 415 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.15 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RL81C221MDN1 | Nichicon | CAP ALUM POLY 220UF 20% 16V T/H | 91% | View |
| 227ULR016MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 16V T/H | 83% | View |
| RNU1E221MDN1PX | Nichicon | CAP ALUM POLY 220UF 20% 25V T/H | 81% | View |
| UGV1E221MP30811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 78% | View |
| UPR0J221MNN6308 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 69% | View |
| 870025174002 | Würth Elektronik | CAP ALUM POLY 220UF 20% 6.3V T/H | 62% | View |
