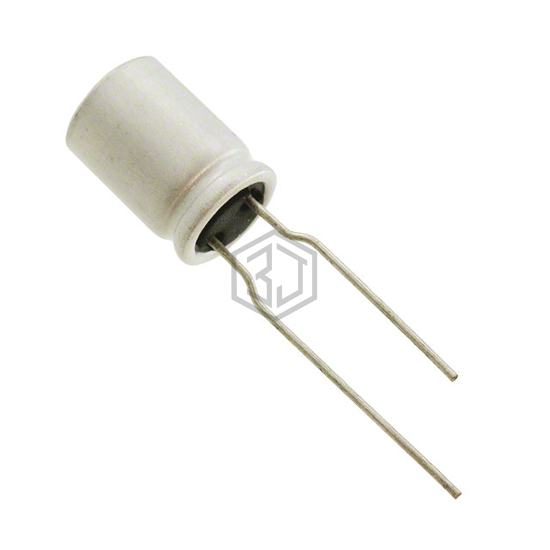

CAP ALUM POLY 270UF 20% 6.3V T/H
RNE0J271MDS1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 270UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,447
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 11mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLS0G271MCO8 | Nichicon | CAP ALUM POLY 270UF 20% 4V T/H | 72% | View |
| APSA100ELL271MHB5S | United Chemi-Con | CAP ALUM POLY 270UF 20% 10V T/H | 72% | View |
| PLF1A271MDO1TD | Nichicon | CAP ALUM POLY 270UF 20% 10V T/H | 71% | View |
| PLF0G271MCO8 | Nichicon | CAP ALUM POLY 270UF 20% 4V T/H | 70% | View |
| RL81C271MDN1 | Nichicon | CAP ALUM POLY 270UF 20% 16V T/H | 63% | View |
| 277ULR016MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 270UF 20% 16V T/H | 62% | View |
Submit your RFQ for RNE0J271MDS1 and get a quote within 24 hours.
