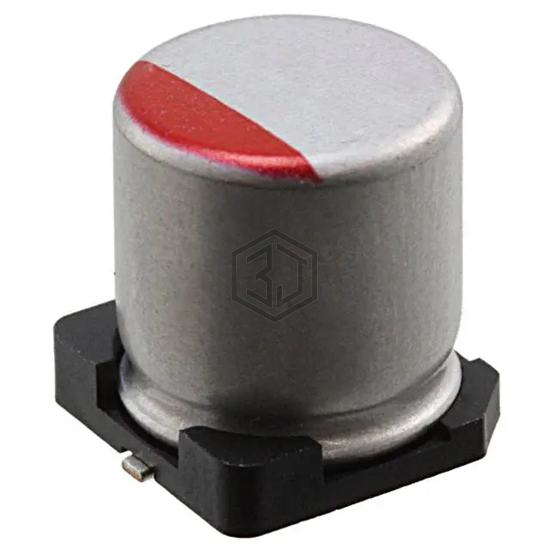

CAP ALUM POLY 100UF 20% 25V SMD
RHS1E101MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXG250ARA101MHA0G | United Chemi-Con | CAP ALUM POLY 100UF 20% 25V SMD | 94% | View |
| MAL218497003E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 100UF 20% 35V SMD | 71% | View |
| 16SVPG100M | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 16V SMD | 70% | View |
| VSP1C101MCB6357 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 66% | View |
| PCF0G101MCL1GS | Nichicon | CAP ALUM POLY 100UF 20% 4V SMD | 57% | View |
| PCJ0J101MCL1GS | Nichicon | CAP ALUM POLY 100UF 20% 6.3V SMD | 56% | View |
