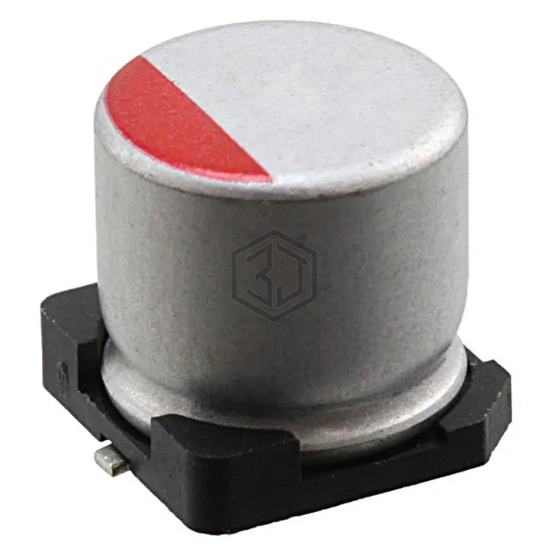

CAP ALUM POLY 330UF 20% 10V SMD
RHS1A331MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 330UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,725
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 19mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 339 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.39 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 10SVPS330M | Panasonic Electronic Components | CAP ALUM POLY 330UF 20% 10V SMD | 83% | View |
| RSA0J331MCN1GS | Nichicon | CAP ALUM POLY 330UF 20% 6.3V SMD | 83% | View |
| VSP0J331MCB6357 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 79% | View |
| RHA0J331MCN1GS | Nichicon | CAP ALUM POLY 330UF 20% 6.3V SMD | 72% | View |
| PCJ0G331MCL1GS | Nichicon | CAP ALUM POLY 330UF 20% 4V SMD | 71% | View |
| MAL218197704E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 330UF 20% 4V SMD | 70% | View |
